The DIN PN40 actuated ball valves, model BV-L6N00EL, deliver high-pressure, full-flow operation with a bore of up to 6 inches. These valves are designed for installation between two alternative flanges within a pipeline. The valves have received approvals from DNV, SIL 2, Lloyds Register, and Nace MR-0175. Additional options for the ball valves include a drilled upstream and cavity relief on the ball, as well as a high-temperature spindle extension for insulation and steam actuation. Stock components are eligible for express shipping, ensuring delivery within 24-48 hours.

Shop Help Me

Key features and benefits of BV-L6N00EL Actuated Ball Valves.

Key Features

EL-O-Matic Pneumatic Actuators ensure the reliability of fail-safe mechanisms essential for secure plant operations, thanks to their durable springs and precise engineering, guaranteeing a long lifespan. When prioritizing quality and safety, opt for EL-O-Matic.

Key Features

The EL-O-Matic F Series comes with a TÜV-approved SIL 3 rating, allowing its use in safety-critical systems without the need to worry about potential consequences in case of failure.

Key Features

Our stainless steel ball valves are meticulously designed to meet application requirements with pressure demands up to 40 bar, emphasising longevity. Additionally, we provide ball valves in various sizes to cater to your specific needs.

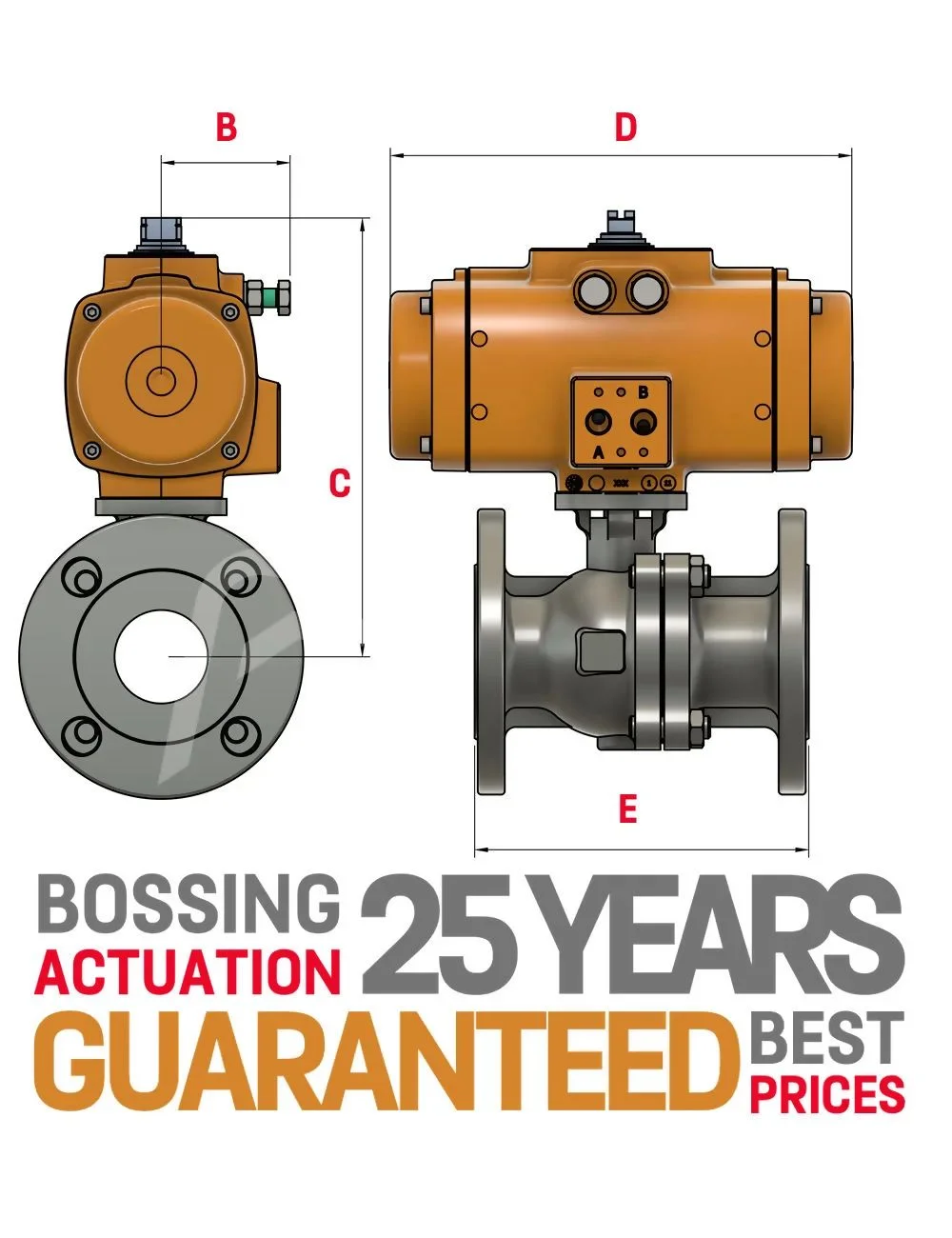

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	48.00	159.00	166.00	115.00	33.00	128.00	103.00	115.00
3/4"	48.00	164.00	166.00	120.00	48.00	164.00	166.00	120.00
1"	58.00	191.00	192.00	125.00	48.00	170.00	166.00	125.00
1 1/4"	58.00	203.00	192.00	130.00	58.00	203.00	192.00	130.00
1 1/2"	69.00	220.00	217.00	140.00	58.00	208.00	192.00	140.00
2"	69.00	236.00	247.00	150.00	69.00	229.00	217.00	150.00
2 1/2"	75.00	279.00	304.00	170.00	69.00	253.00	247.00	170.00
3"	87.00	300.00	362.00	180.00	75.00	294.00	235.00	180.00
4"	109.00	361.00	385.00	190.00	87.00	323.00	265.00	190.00
5"	109.00	404.00	385.00	325.00	87.00	366.00	265.00	325.00
6"	131.00	502.00	658.00	350.00	132.00	482.00	356.00	350.00
8"	130.00	585.00	732.00	400.00	131.00	551.00	400.00	400.00
10"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

ZIP
Size 0100

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	DIN3357 1,2,EN 12516-1
Wall Thickness:	ASME B16.34, EN12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Brochures

CERTIFICATES & APPROVALS

Elomatic Actuator Videos

Elomatic Overview

DRAWINGS & SCHEMATICS

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
