The BV-L6N00XL actuated ball valves with DIN PN40 rating deliver high-pressure, full-flow performance with a bore size of up to 6 inches. These actuated ball valves are designed for easy installation between two different flanges within a pipeline. These valves hold approvals from DNV, SIL 2, Lloyds Register, and Nace MR-0175, ensuring their reliability and compliance with industry standards. Additional options for these ball valves include a drilled upstream and cavity relief feature on the ball itself, as well as a high-temperature spindle extension suitable for insulation and steam actuation. For your convenience, we offer express shipping, ensuring delivery within 24-48 hours for stock components.

Shop Help Me

Key features and benefits of BV-L6N00XL Actuated Ball Valves.

Key Features

The BV-L6N00 Ball Valve boasts low torque requirements, ensuring smooth operation and reducing costs associated with Actuated Ball Valves. This means smaller actuators can be employed to automate valves that typically require larger units.

Key Features

We provide 3D CAD and Step files readily accessible for new product lines and system designs, enabling seamless integration in just minutes. Additionally, we offer a range of mounting options, including direct and customised box section kits, to ensure the perfect fit for your project requirements.

Key Features

The Hytork XL series of pneumatic actuators serves as a suitable alternative to hydraulic systems. These high-torque output units are characterised by their quiet, clean, precise operation and straightforward installation. Whether you're an OEM seeking solutions for small-scale or large-scale production needs, our manufacturing capabilities are well-equipped to meet your demands.

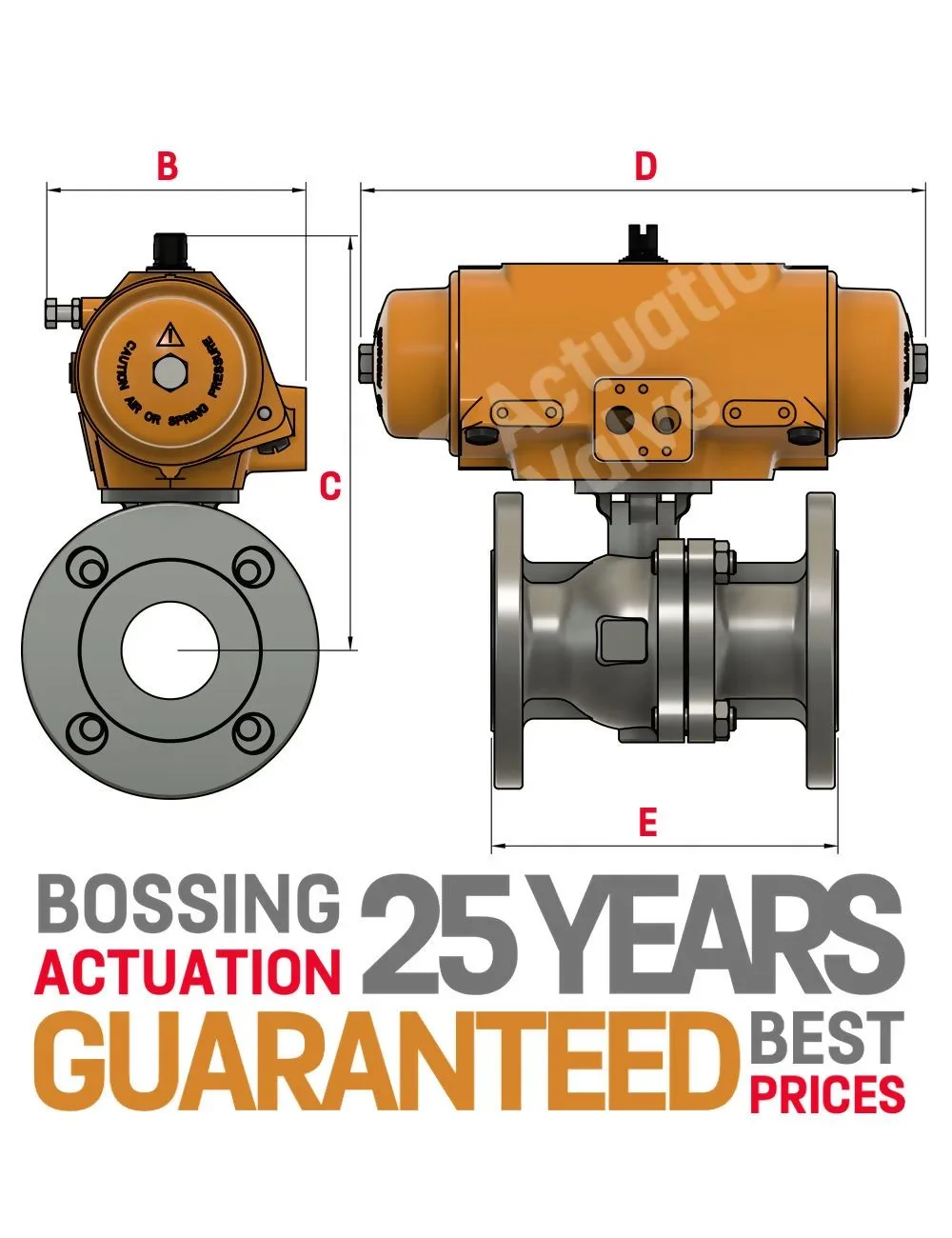

	B	C	D	E	B	C	D	E
	SR	SR	SR	SR	DA	DA	DA	DA
1/2"	97.00	152.50	165.00	115.00	97.00	152.50	165.00	115.00
3/4"	97.00	157.50	165.00	120.00	97.00	157.50	165.00	120.00
1"	116.50	181.40	221.80	125.00	97.00	163.50	165.00	125.00
1 1/4"	116.50	193.40	221.80	130.00	116.50	193.40	221.80	130.00
1 1/2"	116.50	198.40	221.80	140.00	116.50	198.40	221.80	140.00
2"	133.50	223.40	292.00	150.00	116.50	207.40	221.80	150.00
2 1/2"	143.10	246.05	331.60	170.00	133.50	240.40	292.00	170.00
3"	158.50	276.09	349.80	180.00	143.10	261.05	331.60	180.00
4"	174.00	309.00	462.00	190.00	158.50	299.90	349.80	190.00
5"	174.00	352.00	462.00	325.00	158.50	342.90	349.80	325.00
6"	240.00	438.00	647.00	350.00	190.00	408.00	324.00	350.00
8"	246.00	502.00	696.00	400.00	240.00	487.00	396.00	400.00
10"	TBA	TBA	TBA	TBA	TBA	TBA	TBA	TBA

All actuated valve assemblies are fully tested and calibrated in house prior to packing and shipping from our expert team of technical engineers. This means that when they arrive at site, you're immediately ready to install and get your production back up and running.

DRAWINGS & SCHEMATICS

Document

DRAWINGS & SCHEMATICS

If you lack advanced software or your technical skills are not up to par, don't worry. We provide a comprehensive technical drawing service for our automated valves. Our skilled artists are prepared to create the drawings you require. Just let us know your specifications.


Body Material:	ASTM A351 CF8M 316 Stainless Steel & Trim
Seats Material:	TFM 1600 PTFE Ball Seats
Body Seal Material:	Grafoil/316 Stainless Steel
Stem Packing Material:	Grafoil
Design Standard:	DIN3357 1,2,EN 12516-1
Wall Thickness:	DIN3357 1,2,EN 12516-1
Inspection & Testing:	DIN3230/3, EN 12266
Face 2 Face:	DIN 3202 F4 (1/2" - 4") & DIN 3202 F5 (5" - 6")

This valve is appropriate for use with drinking water, provided it falls within the specified pressure and temperature constraints.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Curabitur scelerisque tincidunt egestas. Donec tempor, lorem eu aliquet imperdiet, nisi tellus imperdiet erat, et ullamcorper nibh diam at orci. Integer placerat arcu pretium, condimentum ante et.

Certainly, our actuated valves are provided with comprehensive operations and maintenance manuals. These manuals are furnished by both the valve and actuator manufacturers.

Yes! Position feedback is provided as a standard feature with switches for both open and closed positions.

Potentially. Contact us so we can discuss potential options.

No unfortunately. We do not offer that level of customisation.

Most definitely. We will require some more information. Drop us an email or get in touch on the blower.

Yes we can. Plane label or with a big bow. Send us a copy of your delivery note and we will fix it to the box. Jop done.

We will need to talk to Big Tony. If he says you're good for the debt then everything is in order. You can apply for this on the product page or ask for Big Tony when you get in touch.

Yes it is. In theory you would need to purchase the valves in quantities of two and we can then re-assemble and pressure test prior to shipping.

The BLX V100E Series is an Electro-Pneumatic control unit that allows the Actuator to incrementally adjust the Valve's position between the fully open and closed cycle. Product variants are available for spring return and double acting setups with feedback and safety settings. Ask our team today about how the V100E can help with your process requirements.

CERTIFICATES & APPROVALS

Document

CERTIFICATES & APPROVALS

Hytork Actuator Videos

Hytork Overview

The TopWorx Elomatic Valve Limit Switch Box is accessible for this item. Maintain exclusivity within the Emerson Group of products featuring a globally leading Valve Position Monitor. Options include Safe Area, Explosion Proof, and Intrinsically Safe variants, all readily available in stock, with installation and calibration services provided for your Elomatic Actuator before shipment.
