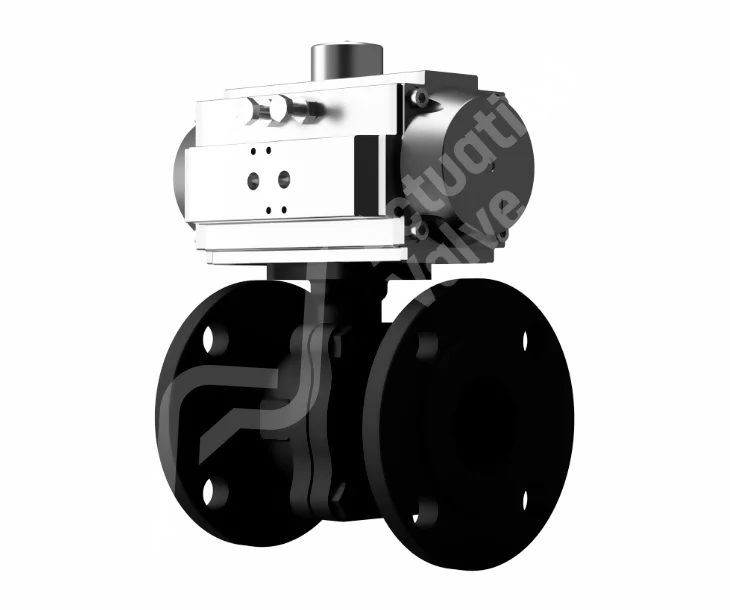

V-Tork Actuated Carbon Steel DIN PN16 Ball Valves

V-Tork Actuated Carbon Steel DIN PN16 Ball Valves are high-performance valves designed for industrial applications requiring reliable and efficient flow control. These valves are constructed from robust carbon steel, making them suitable for use in demanding environments where durability and strength are essential. The valves are designed to comply with the DIN PN16 standard, ensuring compatibility with European pipeline systems.
Shop

Key Features

Key features and benefits of V-Tork Actuated Carbon Steel DIN PN16 Ball Valves.
1

Key Features

The body and ball of the valve are made from high-grade carbon steel, which provides excellent mechanical strength and resistance to wear and tear. This makes the valve suitable for high-pressure and high-temperature applications.
2

Key Features

The valve is equipped with an actuator, which can be either pneumatic, electric, or hydraulic, allowing for automated operation. This feature enhances the ease of use and ensures precise control over the flow of media through the valve.
3

Key Features

The valve is designed according to the DIN PN16 standard, which means it is rated for a maximum pressure of 16 bar. This standardization ensures that the valve can be easily integrated into systems that follow European specifications.

Key Features

Constructed from carbon steel, these valves are known for their robustness and ability to withstand high pressures, making them ideal for demanding industrial applications.

The valves are equipped with flanged end connections, which ensure secure and leak-free attachment to piping systems, and facilitate easy installation and maintenance.

The ball valve design provides a tight seal when closed, ensuring reliable shut-off and minimising the risk of leakage, even in high-pressure applications.

These valves can handle a broad range of pressures, often up to 150 psi or higher, depending on the ANSI class rating (such as ANSI 150, ANSI 300, etc.), making them versatile for various applications.

Carbon steel valves are typically treated with coatings or linings to enhance their resistance to corrosion, ensuring a longer service life, particularly in environments where the valve is exposed to moisture or chemicals.

These valves can operate effectively over a wide temperature range, making them suitable for both high-temperature and low-temperature applications.

Carbon steel flanged ball valves are used in a variety of industries, including oil and gas, chemical processing, water treatment, and power generation, thanks to their adaptability to different fluids and pressures.

The quarter-turn operation of ball valves allows for quick opening and closing, which is beneficial in situations where fast response times are critical.

The straight-through flow design of ball valves minimises pressure drop across the valve, enhancing efficiency in fluid handling systems.

These valves are designed to comply with various industry standards, such as ANSI, API, and ISO, ensuring that they meet stringent safety, quality, and performance criteria.

Due to their simple design and durable construction, carbon steel flanged ball valves require minimal maintenance, which reduces operational downtime and maintenance costs over the valve's lifespan.

Many carbon steel flanged ball valves are designed with fire-safe features, which ensure that the valve can maintain its integrity and prevent leaks even in the event of a fire, providing an added level of safety in critical applications.

Carbon Steel Ball Valves

V-Tork Documents

  • Document
Brochure

V-Tork New Series Pneumatic Actuator
  • Document
Certificate

SGC MD 2006/42/EC
  • Document
Certificate

ATEX TUV NORD
  • Document
Certificate

Bureau Veritas SIL 3

V-Tork Structure (click to learn more)

Our products meet the latest international standards, including ISO 5211, DIN 3337, and VDI/VDE 3845, among others. They are also fully compliant with the NUMAR standard. This ensures easy interchangeability and convenience when replacing or mounting accessories like solenoid valves and limit switches.

The rack and pinion tooth is engineered with a superior tooth profile ratio for minimal clearance, ensuring precise driving and enhanced output power. This high-precision design delivers reliable performance and efficient power transmission.

Utilise a rack and pinion system with double pistons to benefit from a compact design, extended operational life, and rapid functionality. The tooth surface of the piston, processed via a CNC machining centre, ensures enhanced gear efficiency and precise transmission. This leads to stable and dependable performance. Additionally, altering the rotation direction is straightforward—simply reverse the pistons, thanks to the design’s symmetrical mounting capability.

The body of the extruded aluminium is treated to resist corrosion both inside and out. A finely ground cylinder surface results in a low coefficient of friction and extends the product's cycle life significantly.

Integrate and streamline your design with our compact actuator models, which use the same body and end caps for both double-acting and spring-return mechanisms. This uniformity minimises spare parts inventory, enhancing convenience for customer applications in the field. You can easily modify these actuators by adding or removing spring cartridges, making them highly adaptable and user-friendly.

Preload spring cartridges featuring a specialised coating are suitable for numerous applications, offering enhanced security and resistance to corrosion. These modular units are designed to function effectively in various environments, ensuring reliability and long-lasting performance.

Dual independent travel stoppers allow for precise and convenient external adjustments of ±5° in two directions. This enables actuators to align with the valve during both the opening and closing phases of the stroke.

The specialised sealing ring positioned between the body and cylinder prevents initial failure due to the suction of the rubber plug. This feature enhances safety, ensures a leak-proof seal, and extends the product's lifespan.

High-quality bearings feature reliable seals, low friction, extended service life, and a broad application temperature range.

Composite bearings and guides in both the pinion and piston guarantee precise functionality, minimal friction, and extended durability. This design effectively safeguards the output shaft against fractures.

The Pneumatic Actuator to last a lifetime

Frequently Asked Questions

Carbon steel ball valves are primarily used in industrial applications to control the flow of liquids and gases. Their robust design makes them suitable for high-pressure environments and a variety of temperatures, ideal for sectors like oil and gas, water treatment, and chemical processing.
A carbon steel ball valve controls flow by rotating a ball with a hole through it. When the ball's hole is aligned with the flow, it allows passage; when rotated 90 degrees, it blocks the flow. This design ensures quick and reliable operation, making them efficient for on/off control.
Carbon steel offers high strength, durability, and corrosion resistance, making it ideal for industrial applications. It can withstand high pressures and temperatures, ensuring longevity and reliability in harsh environments.
Yes, carbon steel ball valves are versatile and can be used to control the flow of both liquids and gases. Their robust construction ensures they can handle various types of media, including steam, water, oil, and gas.
Absolutely. Carbon steel ball valves are designed to withstand high-pressure conditions, making them suitable for applications in industries like oil and gas, where pressures can be extremely high.
Regular maintenance includes cleaning, inspecting for corrosion or wear, and lubricating moving parts. It's important to follow the manufacturer's guidelines for specific maintenance procedures to ensure the valve's longevity and optimal performance.
Carbon steel ball valves are available in a wide range of sizes, typically ranging from a few inches to several feet in diameter, to accommodate different pipe sizes and flow requirements.
Yes, they are designed to operate effectively in high-temperature environments, which is common in many industrial processes. The specific temperature range will depend on the valve's design and material grade.
Look for certifications like ISO 9001 for quality management, API (American Petroleum Institute) standards for oil and gas industry valves, and ANSI (American National Standards Institute) standards for general valve specifications.
Carbon steel ball valves are generally cost-effective compared to other materials like stainless steel or special alloys. They offer a good balance of durability and cost-efficiency, making them a popular choice for many industrial applications.
Carbon steel ball valves come with a variety of connection options, including threaded (NPT or BSP), flanged (ANSI or DIN standards), welded, and socket weld connections. This flexibility ensures they can be easily integrated into various piping systems, accommodating different installation requirements.
Carbon steel ball valves are known for their strength and durability, especially in high-pressure environments, while stainless steel valves offer superior corrosion resistance and are ideal for harsh chemical or saline environments. The choice between the two typically depends on the specific application, media involved, and environmental conditions. Carbon steel valves are often preferred for their cost-effectiveness and robustness in standard industrial applications.

FAQ

Request more information or Advice

Please feel free to request information and advice using the form below or call us on 0151 547 1221
